UA9 TC156-AN

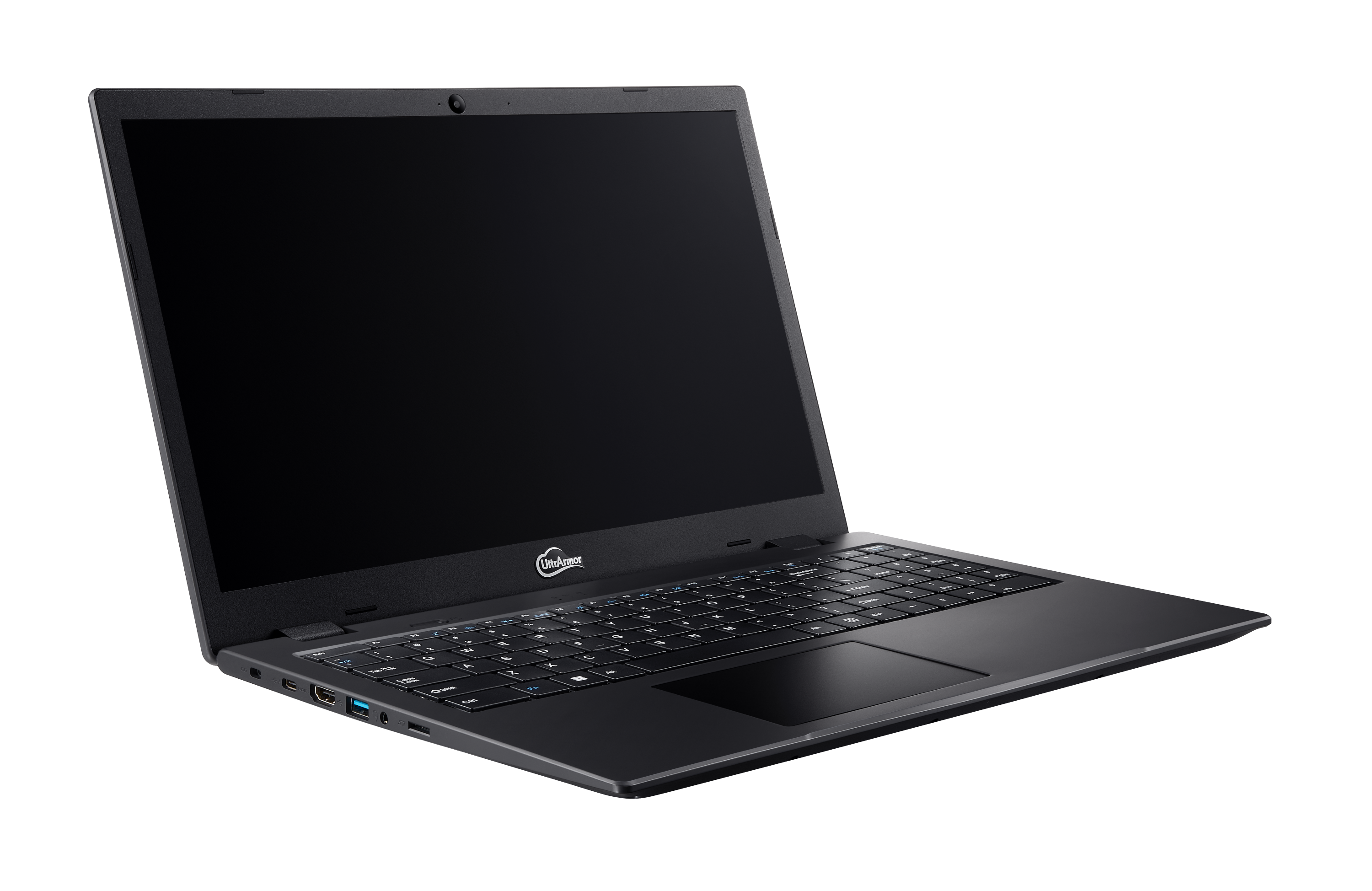

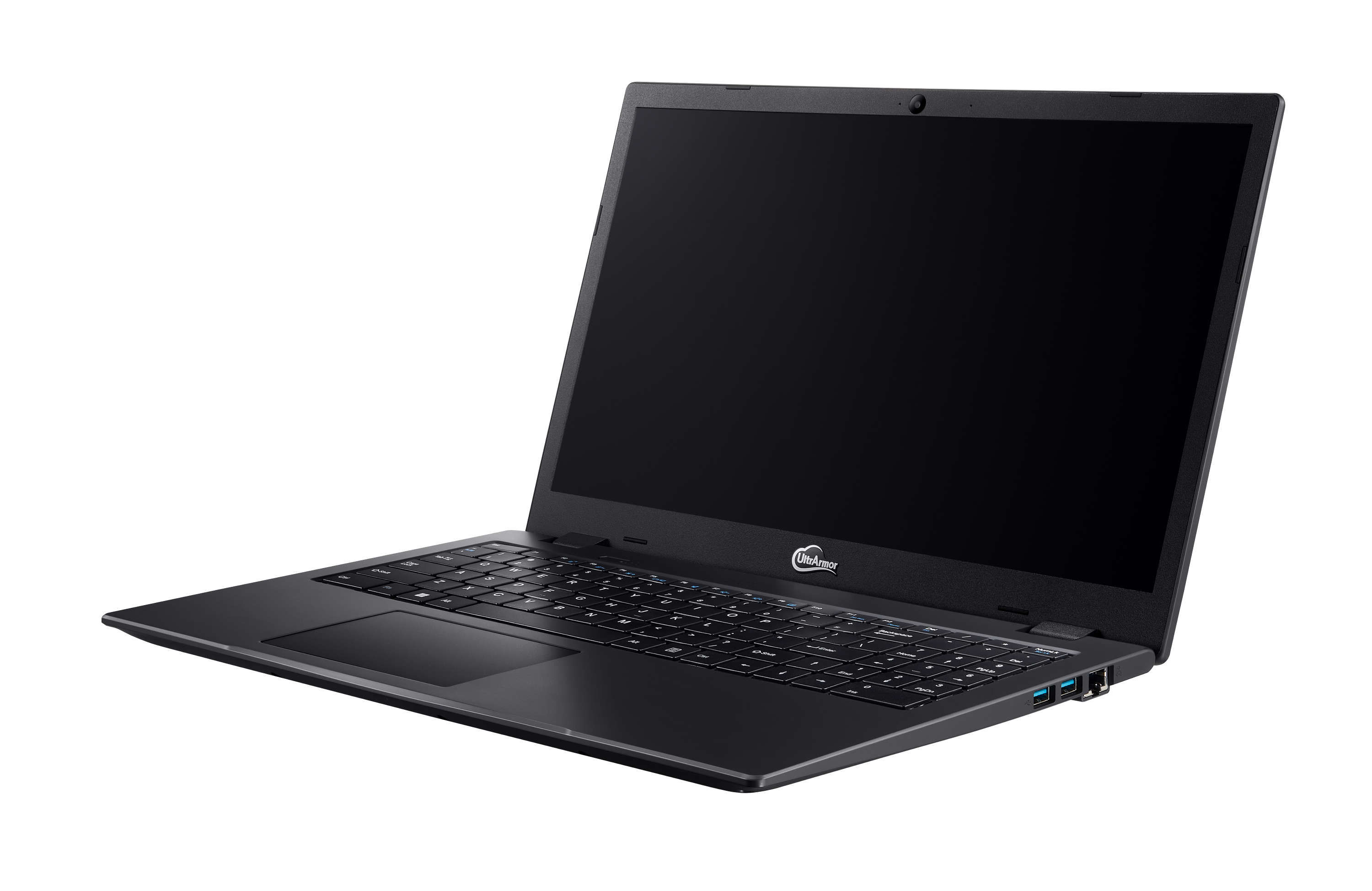

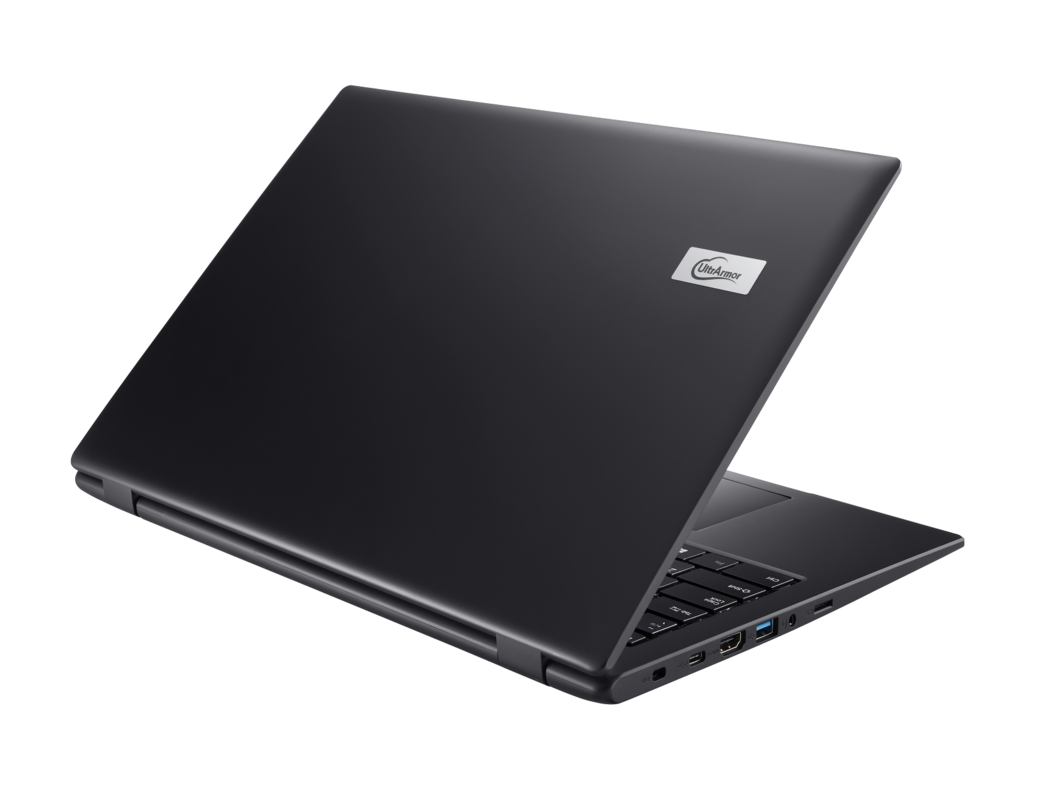

The UA9 laptop endpoint is powered by Intel® Alder Lake N quad-core processors, generating less power to extend the life of the device while delivering superior processing power. Its 15.6-inch LCD screen has a numeric keyboard, and it can be accessed from anywhere via built-in WiFi and wired connections for greater mobile productivity.

最新
  • Features
  • Specification
  • Downloads

Maximize durability, Minimize operating cost

Fanless UA9 eliminates the need for moving parts and extends battery life, offering superior durability and reliability



Built-in WiFi enables a mobile work environment

UA9 can access virtual desktops from anywhere with built-in WiFi and wired connection, achieving a greater mobile workforce capacity



Support 2 multiple monitors for optimal visual quality

Level up your visual experience with multiple-display functions. UA9 supports up to 2 UHD/4K displays, creating an immersive workspace with less effort



Energy efficiency and E-waste minimization

UA9 effectively reduces electricity bills with Intel® Alder Lake N100 CPU, generating less power to prolong the life of the device while providing exceptional processing



See greatness from a 15.6" LCD screen

UA9 uses a 15.6-inch LCD screen with a Numpad keyboard to increase productivity for the intensive working environment



Support IGEL OS and Win10 IoT Enterprise LTSC

Support multiple operating systems tailored to align with specific use cases and IT infrastructure requirements perfectly

Performance

CPU

Intel® Alder Lake N100 processor supports up to 3.4GHz max turbo frequency, Quad Core four threads

Memory

8GB DDR4-3200MHz single channel

Multiple

Display

15.6“ full HD LCD, 1 HDMI 1.4, USB-C Alt mode

Display Resolution

Full HD on LCD, 4K 60Hz on connected displays(Max)

Brightness (typical)

250 cd/m² typ.

Viewing

Angle

CR(>10):85/85 (V/H) typ.

Graphic & Design

          Intel® 12th UHD Graphics 24EUs

          Full HD 2MP webcam with microphone

          HEVC, VP9, and AVC decode support

          Support AVX2 instruction sets

Expandability

WiFi

(Optional)

          Onboard combo WiFi6, 2 internal antenna (RTL8852BE)

Bluetooth

5.2

Storage

          M.2 2280 M Key 128G SATA SSD

          Micro SD Card Reader (Windows support only)

LAN

RJ-45 10/100/1000Mbps

USB

3 USB-A 3.2 Gen1, 1 USB-C 3.2 Gen1 with DP Alt mode, power delivery

Audio

Combo audio jack for headset and internal speakers

Power

USB Type-C 65W power adapter

Battery

Polymer 3S1P 11.4V/3950mAh/45W Li-Polymer Battery, 3 cells

Keyboard

Language

German, Spanish, French, and English

Manageability / Security

Security Lock

Kensington lock slot

WoL

RJ45 LAN with standby power design supports Magic Packet wake-up event

TPM

Infineon TPM 2.0

Environment

Cooling

Passive cooling

Operating Temperature

0 °C to 35 °C, 32 °F to 95 °F in vertical position

Operating Humidity

20% - 80% non-condensing
